Healthy Together

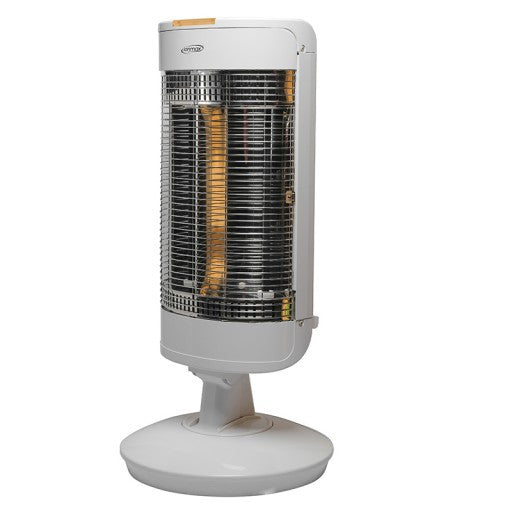

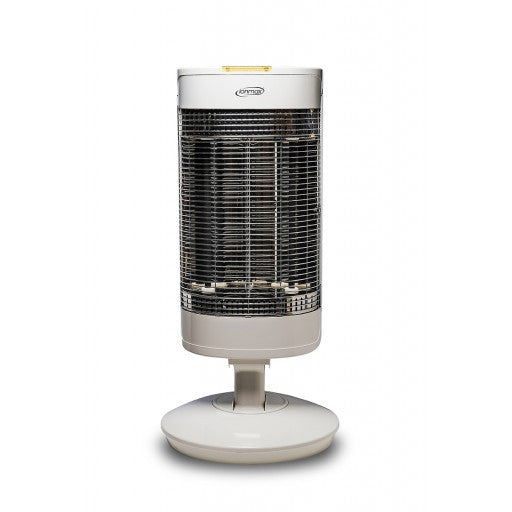

Ionmax Ray -ION801/Far Infrared Heater.New shipment arrives in June. Pre-order your item now

Regular price
Regular price
Sale price

The Ionmax Ray Far Infrared Heater creates heat that you can feel in any room, just like the sun does but without its harmful UV rays. It uses Far Infrared (FIR) rays to create heat that travels cleanly through the air and is absorbed by objects it touches. Our skin absorbs FIR heat especially well, as the human body is composed of 80% water. This heat is readily transported around the body, keeping you warm. Objects retain the heat they have absorbed and re-radiate it back into the room, helping to prevent heat loss through drafts and providing a more energy-efficient and economical method of heating.

The latest in heating technology, far infrared ( FIR ) heating offers efficient direct heating that warms you up, not the air. 4 ~ 14μm Far-infrared thermal waves easily penetrate and warm up body

What is Infrared Heat?

Infrared is an invisible radiant energy; electromagnetic radiation with longer wavelengths than those of visible light. A great example of infrared heat is the Sun - the ultimate infrared heater. The Sun generates infrared heat through the combustion of gases, and this infrared energy passes heat directly through space to warm the surface of the earth. So even on a cold day, objects and people are warmed by the heat radiated by the sun even though the surrounding air may be cold.


Benefits of FIR heating?

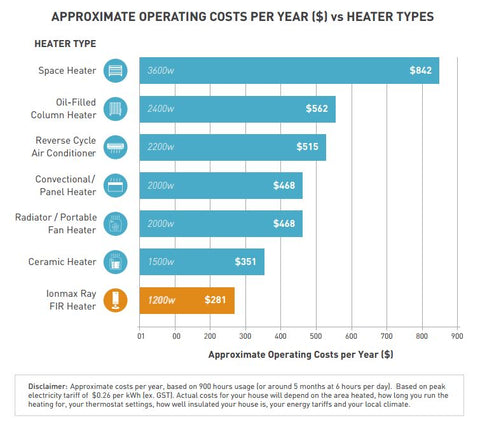

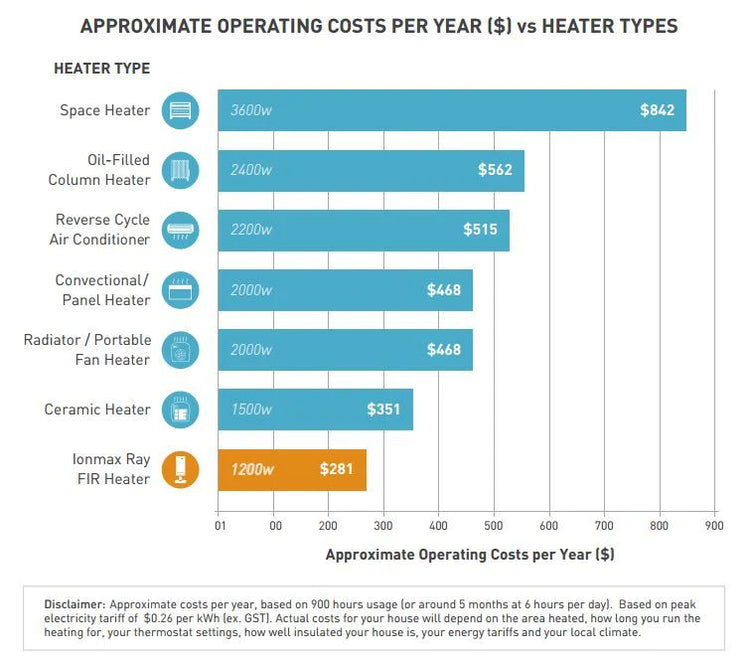

Ever wondered why in winter, a room at 20ºC feels cold but in summer, the same room at 20ºC feels hot? The answer is Far Infrared (FIR) radiation (waves). Windows also allow large amounts of FIR radiation from the sun to enter a room in summer, but in winter there is less FIR radiation available from the Sun. In summer, walls, floors, and objects in the room warm up and emit FIR waves that your body feels as heat. In winter, the same objects tend to be much cooler and therefore emit much less FIR radiation, so your body feels colder even though the air temperature is the same. The Ionmax Ray produces FIR radiation (waves) that replace the FIR radiation normally missing in winter, allowing a feeling of warmth. This can translate into energy savings as it is possible to feel warm at lower room temperatures, reducing the load on area or whole home heaters (ducted). Since the Ionmax Ray produces FIR radiation, not warm air, it is even possible to get these benefits in rooms with large ceilings or with drafts that otherwise make using standard room heaters ineffective or too costly to operate.

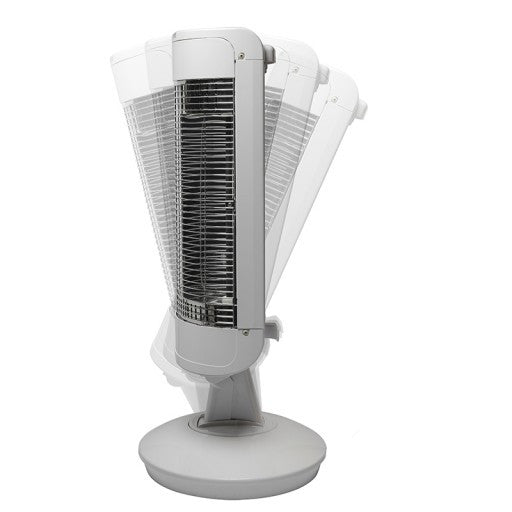

Versatile Tilt

Target any area or direction in a room with the Ionmax Ray's versatile tilting adjustments

Smart postures provide automatic balance at every angle

Comprehensive Features

  Efficient and targeted heating
Innovative FIR technology warms you up, not the air

Low Noise Operation
Just 15~30 db (equivalent to the sound of rustling leaves or a whisper)

Suits rooms of all sizes

Power Cord Holder

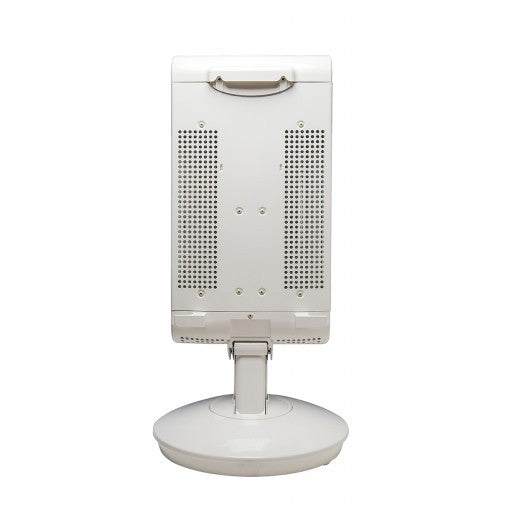

Top Handle for easy lifting and tilting adjustments

Automatic Balance Link



200-240V, 50Hz

Power Rating

200-1200W, 9 level adjustment

Heater Level - Approximate Wattage

Level 1 - 200W

Level 2 - 320W

Level 3 - 440W

Level 4 - 560W

Level 5 - 690W

Level 6 - 810W

Level 7 - 930W

Level 8 - 1050W

Level 9 - 1170W


1 - 9 hour setting, automatic switch-off at 10 hours

Heating Elements

2 far infrared ceramic coating sheath heaters
(Average emissivity over 0.9)

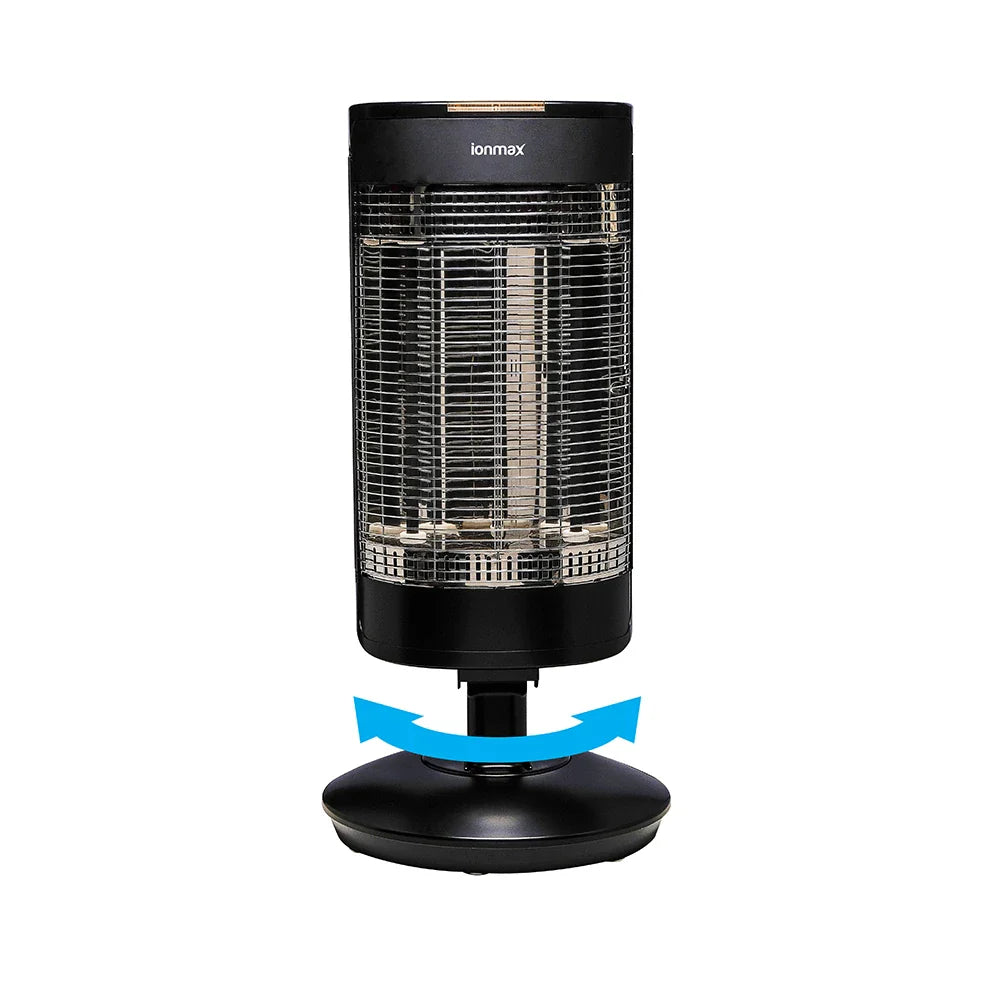

Auto Swing


Manual Rotate

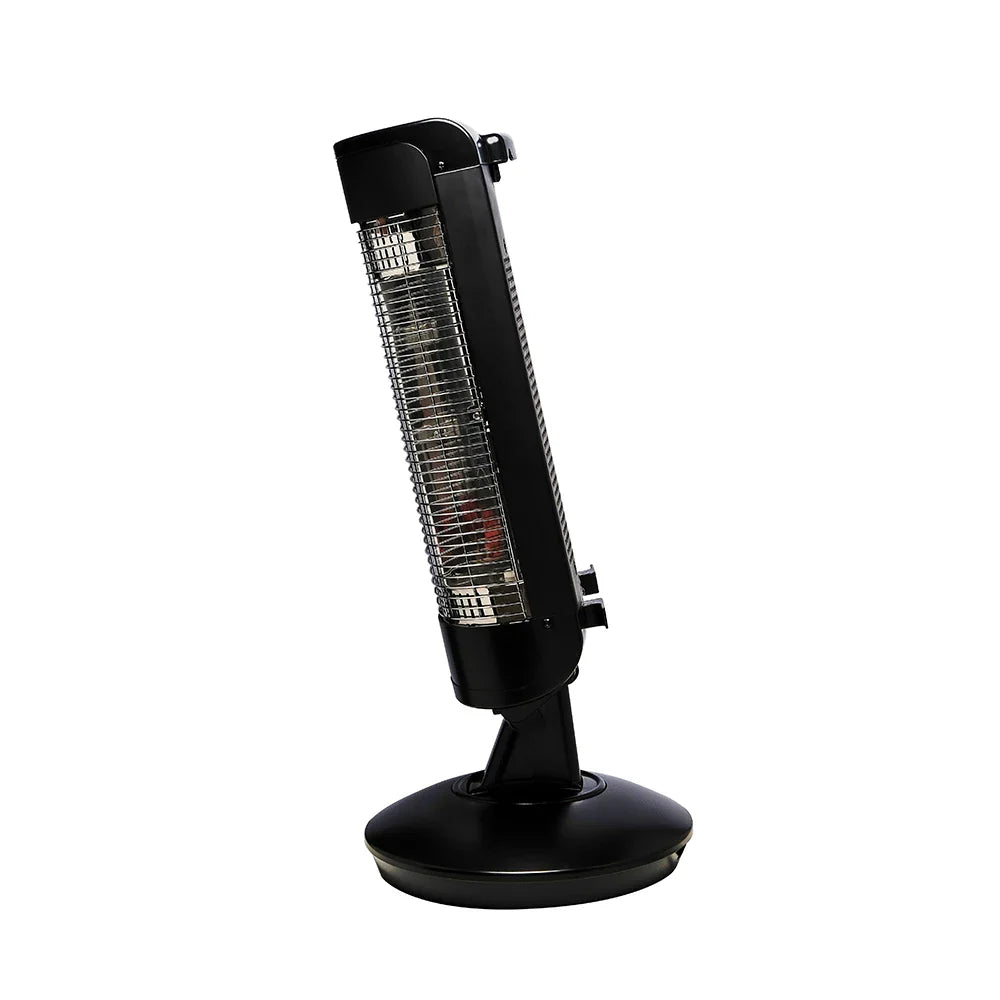

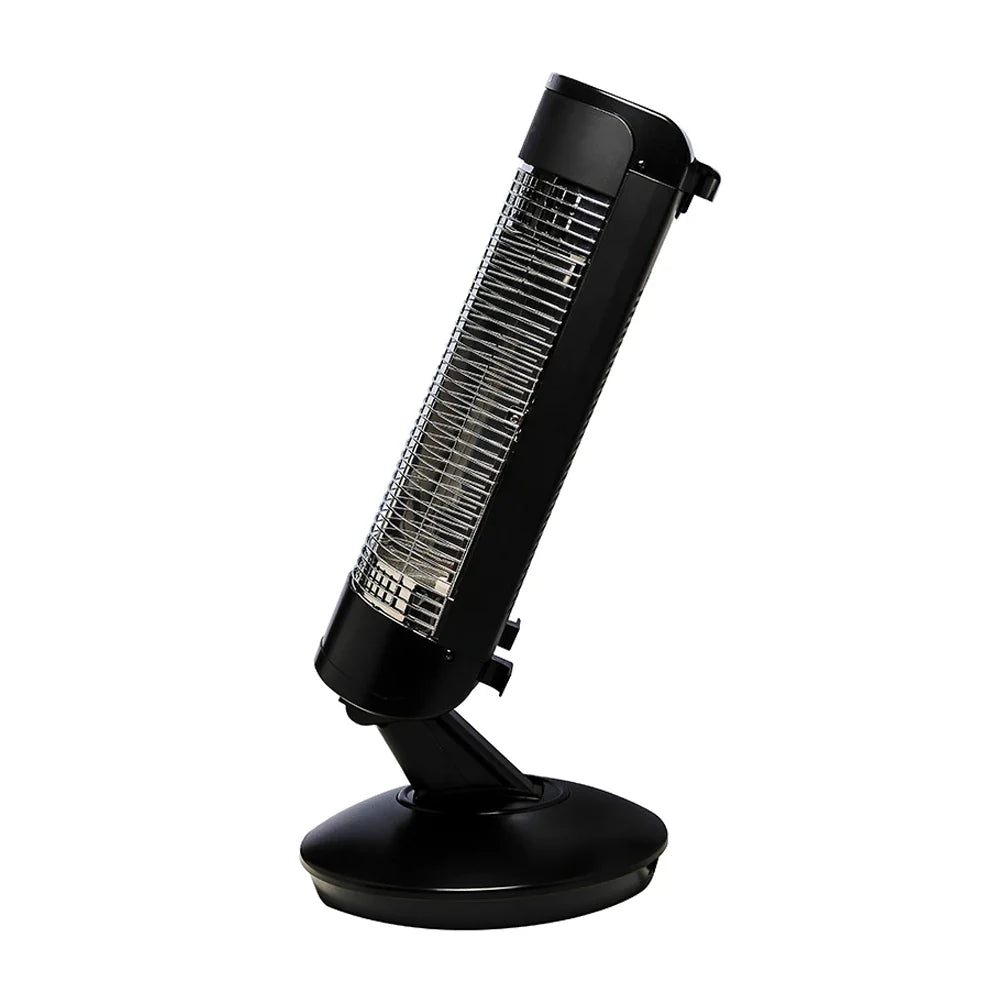

Tilt Angle

Smooth 10° downward to 30° upward

Noise Level

15 ~ 30dB


354 (width) x 318 (depth) x 729 (height) mm


6.1 kg
